CIMConnect - PDF Solutions

Software to Implement GEM (SECS/GEM) Communication

What is Cimetrix CIMConnect?

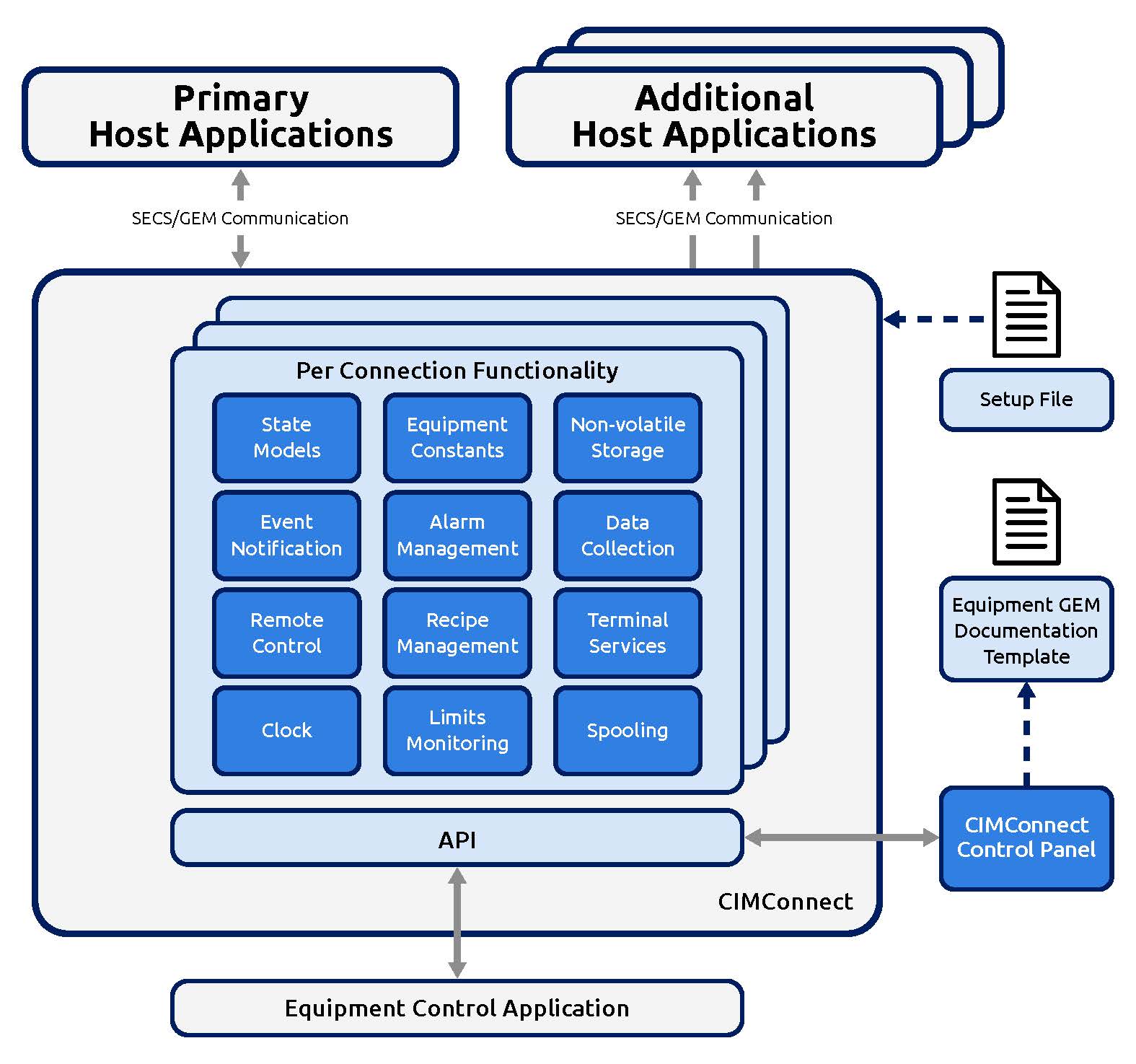

Cimetrix CIMConnect is a comprehensive software toolkit designed to facilitate the development and deployment of communication interfaces on manufacturing equipment. It includes libraries, sample applications, testing tools, and a GEM Manual template. The CIMConnect architecture supports various standards, including SEMI E30 (SECS/GEM), SEMI PV2, SEMI HB4 (HB-LED ECI), and SEMI A3 (PCBECI), along with multiple independent host interfaces through a generic communication abstraction layer.

DOWNLOAD the CIMConnect datasheet

Why Choose CIMConnect?

CIMConnect stands out due to its dynamic configuration capabilities, making it easier and more cost-effective to deploy across different equipment types. The toolkit includes sample applications to accelerate the development process. The CIMConnect Control Panel offers real-time diagnostics, testing, and simulation, providing valuable insights during development and deployment. The use of SMN brings the convenience of XML for both designing and using the GEM interface.

Key Features of CIMConnect

Dynamic Configuration

Deploy GEM interfaces seamlessly across varied equipment types, significantly reducing development time and costs for entire equipment families.

CIMConnect Control Panel

Real-time insights into the GEM interface for comprehensive diagnostics, testing, and simulation. Monitor SECS-II message activity, alarms, and events directly within the control panel.

Multiple-Host Support

Connect multiple GEM host applications effortlessly. Enable secondary hosts for diagnostics and interface validation without interrupting factory operations.

Sample Applications in Multiple Programming Languages

Accelerate your development process with pre-built, functional sample applications in languages such as C#, VB.NET, and C++. These samples provide a robust foundation for implementing GEM.

Proven and Trusted

CIMConnect has been implemented on nearly every equipment type across the globe. Its maturity ensures compliance with SEMI standards, robust performance, and unparalleled reliability in manufacturing environments.

Future-Forward Standards Support

Stay ahead of compliance needs with support for the latest SEMI standards, including SECS-I, SECS-II, HSMS, E173 (SMN), PV2, HB4, and PCBECI.

Specifications

Supported Standards:
- SECS/GEM
- PV2
- HB4
- SEMI A3
- SEMI E173
- SEMI E172
Development Languages: Compatible with VB.NET , C++, C#, and others
Supports Windows 10 and later

Support

Cimetrix is committed to supporting your project from start to finish. Our goal is to empower you to control your own development process. We offer comprehensive product training to get your team up to speed quickly. Additionally, our engineering personnel are available to assist with project planning, design, and initial deployment.

Frequently Asked Questions

Dynamic Configuration
Deploy GEM interfaces seamlessly across varied equipment types, significantly reducing development time and costs for entire equipment families.
CIMConnect Control Panel
Real-time insights into the GEM interface for comprehensive diagnostics, testing, and simulation. Monitor SECS-II message activity, alarms, and events directly within the control panel.
Multiple-Host Support
Connect multiple GEM host applications effortlessly. Enable secondary hosts for diagnostics and interface validation without interrupting factory operations.
Sample Applications in Multiple Programming Languages
Accelerate your development process with pre-built, functional sample applications in languages such as C#, VB.NET, and C++. These samples provide a robust foundation for implementing GEM.
Proven and Trusted
Stay ahead of compliance needs with support for the latest SEMI standards, including SECS-I, SECS-II, HSMS, E173 (SMN), PV2, HB4, and PCBECI.
