CIMPortal Plus

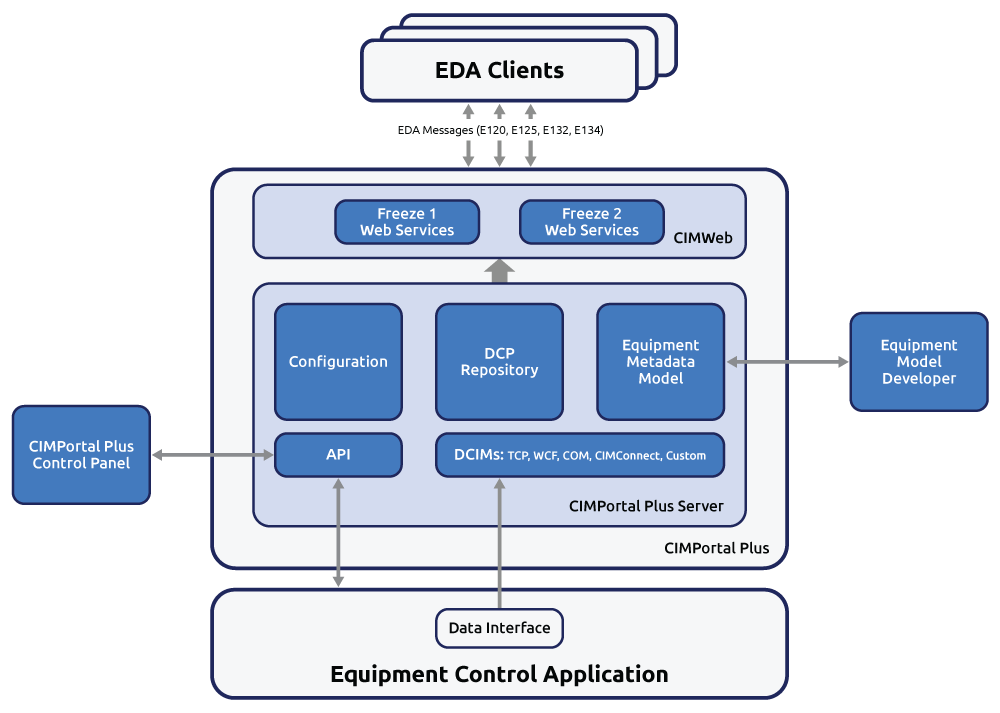

Flexible Data Collection Architecture

• Multi-Interface Data Modules: Supports data acquisition via TCP/IP, WCF, COM-based APIs, CIMConnect SECS/GEM integration, and custom DLL implementations.
• High-Performance Server: Provides efficient data processing with an out-of-process architecture, ensuring memory isolation and streamlined diagnostics for enhanced system stability and maintainability.
• Multi-Source Integration: Enables concurrent data collection from both Windows and non-Windows applications, as well as distributed systems.
• Real-Time Monitoring: Detects and responds to performance degradation using configurable thresholds for proactive system management.


Standards Compliance and Security

• Dual Freeze Version Support: Enables simultaneous compatibility with Freeze Version 1 (1105) and Freeze Version 2 (0710) with a single equipment model.
• E164 Metadata Compliance Tools: Provides templates and wizard-based tools for implementing SEMI E164 specifications with built-in metadata validation.
• E132 Authentication Framework: Delivers robust security features including Access Control List (ACL) management and session control.
• Full SEMI Standards Integration: Offers comprehensive support for SEMI standards including E120, E125, E128, E132, E134, E138, and E164.

Administrative and Monitoring Tools

• CIMPortal Plus Control Panel: Centralized dashboard for real-time system monitoring, configuration management, ACL administration, and diagnostics.
• Web-Based Remote Access: Secure HTTP/HTML interface for remote equipment monitoring and session control.
• Integrated Logging System: Customizable diagnostic logging with a dedicated viewer for troubleshooting and performance analysis.
• Windows Performance Counters: Seamless integration with Microsoft performance tools for enhanced system optimization.

Specifications

• Supported SEMI Standards:
  • SEMI E120 (Common Equipment Model)
  • SEMI E125 (Equipment Self-Description)
  • SEMI E132 (Equipment Client Authentication and Authorization)
  • SEMI E134 (Data Collection Management)
  • SEMI E164 (EDA Common Metadata)
• Operating System: Windows 10/11 (64-bit), Windows Server 2012 R2/2016/2019
• Processor: 2+ GHz 4-core i5 or i7 processor minimum
• Memory: 4 GB RAM minimum (32-bit), 8 GB RAM recommended (64-bit)
• Storage: 1 GB available hard drive space
• Network: Ethernet interface for HTTP/HTTPS communication
• Development Environment: Microsoft Visual Studio 2005-2022

Support

Our solution includes training resources, sample applications, and detailed documentation to accelerate development. Cimetrix’s global support team is available to assist engineers during critical implementation stages, ensuring a smooth and successful deployment.

Frequently Asked Questions

1. What sets CIMPortal Plus apart from other EDA solutions?
   CIMPortal Plus distinguishes itself through its ability to support multiple SEMI freeze versions concurrently using a single equipment model. It offers advanced E164 compliance tools and a flexible data collection architecture compatible with both Windows and non-Windows environments. Trusted by 8 of the top 10 global semiconductor equipment suppliers, CIMPortal Plus delivers proven, industry-leading technology.
2. How does dual freeze version support function?
   CIMPortal Plus automatically transforms a single equipment model into formats compatible with both Freeze Version 1 and Freeze Version 2. This enables factories to operate either interface—or both—without requiring separate models for different customer specifications, streamlining deployment and reducing maintenance overhead.
3. Which development environments are supported?
   The SDK is compatible with a wide range of Microsoft Visual Studio versions, from 2005 through 2022, and supports development in Visual C++, C#, VB.NET, and other COM-compatible environments. Additionally, the TCP/IP interface works seamlessly with all major C++ compilers across both Windows and Linux platforms.
4. Is training and support included?
   CIMPortal Plus comes with extensive documentation, detailed API references, and sample applications with full source code. The SDK includes one year of technical support. Integration services, consulting, training programs, and extended support packages are available through PDF Solutions.
5. How is performance optimization managed?
   CIMPortal Plus features configurable performance monitoring that automatically detects issues related to CPU usage, memory allocation, and thread count. Upon identifying performance degradation, the system initiates E134-defined PerformanceWarning interactions and temporarily disables data collection plans, allowing the operating system to stabilize and recover efficiently.
